DSO2512G LCD Handheld Digital Oscilloscope Kit - 2 Channel 2.8"TFT Mini Automotive Oscilloscope Bandwidth 120Mhz Digital Oscilloscopes 500MS/s Sampling Rate, Vertical Sensitivity 10mV/div~10V/div
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.world-of-webcam.de
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.world-of-webcam.de
Free 30-day returns Details
Product details
| Management number | 210908517 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 210908517 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

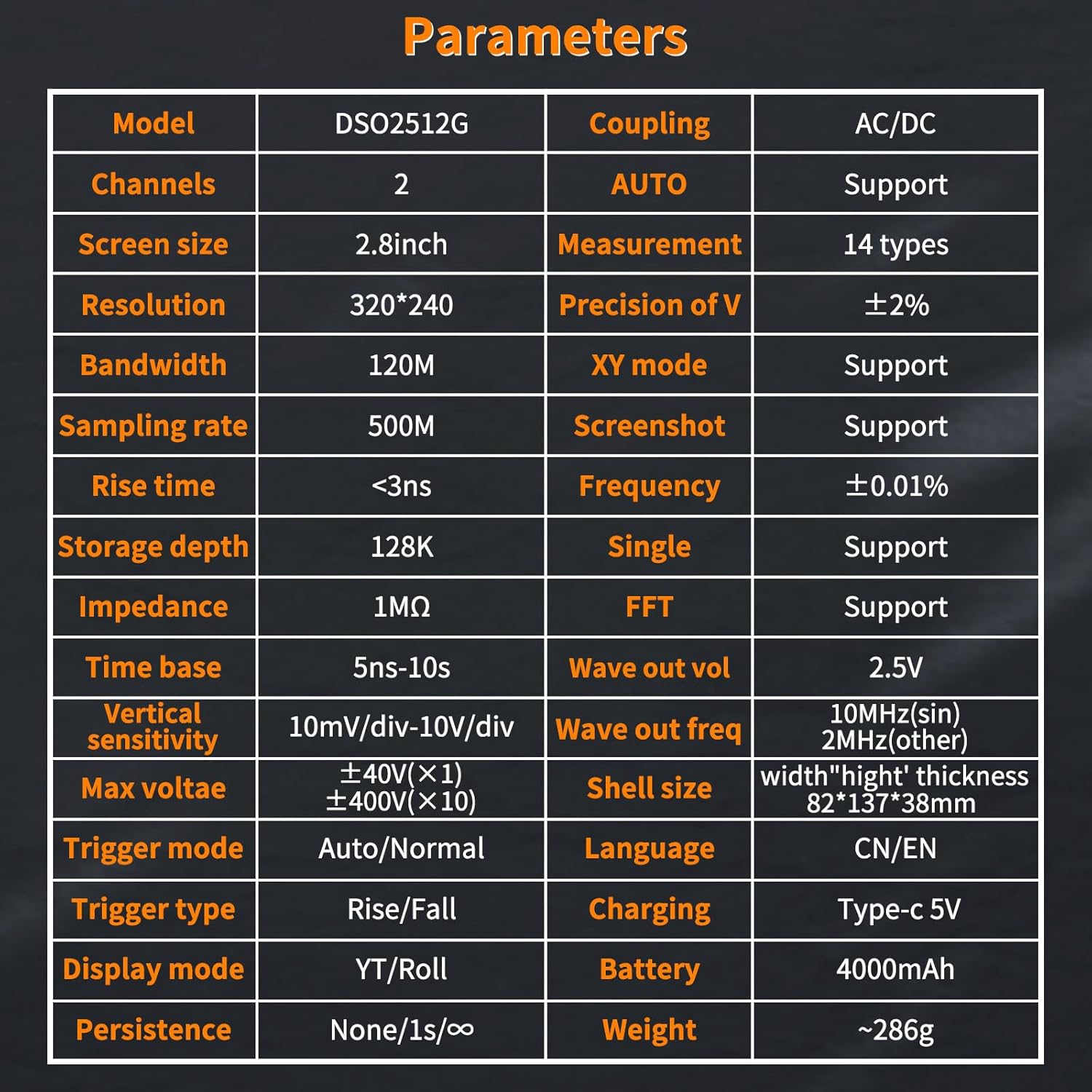

- New upgraded version: dual channel 2.8" HD LCD oscilloscope with 500MSa/s real time sampling rate, 120MHz bandwidth, 500Khz signal generator frequency, vertical sensitivity range 10mV/div-100V/div, it uses ARM+FPGA+ADC chip combination for high speed signal acquisition and data processing, making it the perfect choice for various measurement and test fields
- Professional design: with three trigger modes (auto/normal/single), two trigger types (rise/fall) and two trigger levels (manual/auto). It offers 14 measurement options and supports waveform parameter settings such as time base and amplitude. Save/preview waveforms by clicking the "Save" button, up to 1000 waveforms can be retained and unwanted waveforms can be deleted. One-click Auto Auto waveform adapts to the screen for accurate results without adjusting parameters
- Signal generator: The bottom of the oscilloscope can output a variety of waveforms with 2.5V amplitude, such as sine, square, triangle, half, singe, noise, etc. The frequency adjustment range of sine waveform is 0~10MHz, and the frequency range of other waveforms is 0~2MHz with an accuracy of up to 0.1Hz. For novices, it can also be used to assist in learning to use the oscilloscope and save the cost of buying expensive signal generators
- Cursor measurement: Support for manual cursor measurement Support for horizontal and vertical cursor measurement functions, useful for measuring pulsed signals, spikes or other non-periodic signals
- Safety in use: The handheld oscilloscope is intelligent and burn-proof, with a built-in high voltage protection module that can withstand up to 400V AC/DC voltage signals. And the built-in 4000mAh high quality battery can be used continuously for about 6 hours after a full charge
- Wide range of applications: can measure the voltage amplitude, period, signal waveform, etc. of DC signals and AC signals. It can be used for microcontroller debugging, car repair, home appliance repair, DIY debugging, e-sports, power supply debugging, inverter, etc
- After-sales Service: We have a strong after-sales service team, as long as you have any questions about the product, we will solve your problem immediately after receiving your email, please click "MakerHawk-US" and click on how to send us an email "Ask a question" email us, looking forward to your inquiry, we will reply you within 24 hours
